Incubator Builds?

Where can I find incubator designs? I fully intend to breed some day when my bps are big enough. I can only find very small incubators online. I don't heat my entire snake room which does concern me a little bit.

If anyone has any incubator designs they would like to share please post them here. I really want to get an idea of all the possible build options out there. I haven't been on these forums for very long, but one thing I have learned is this is the right place to look for help. Lots of creative and handy people around here:D

There are a few threads in the DIY forum and there is also this http://www.arbreptiles.com/cages/incubator.shtml

Here is my DIY incubator. It will hold 2 clutches.

I got it off a classifieds site.

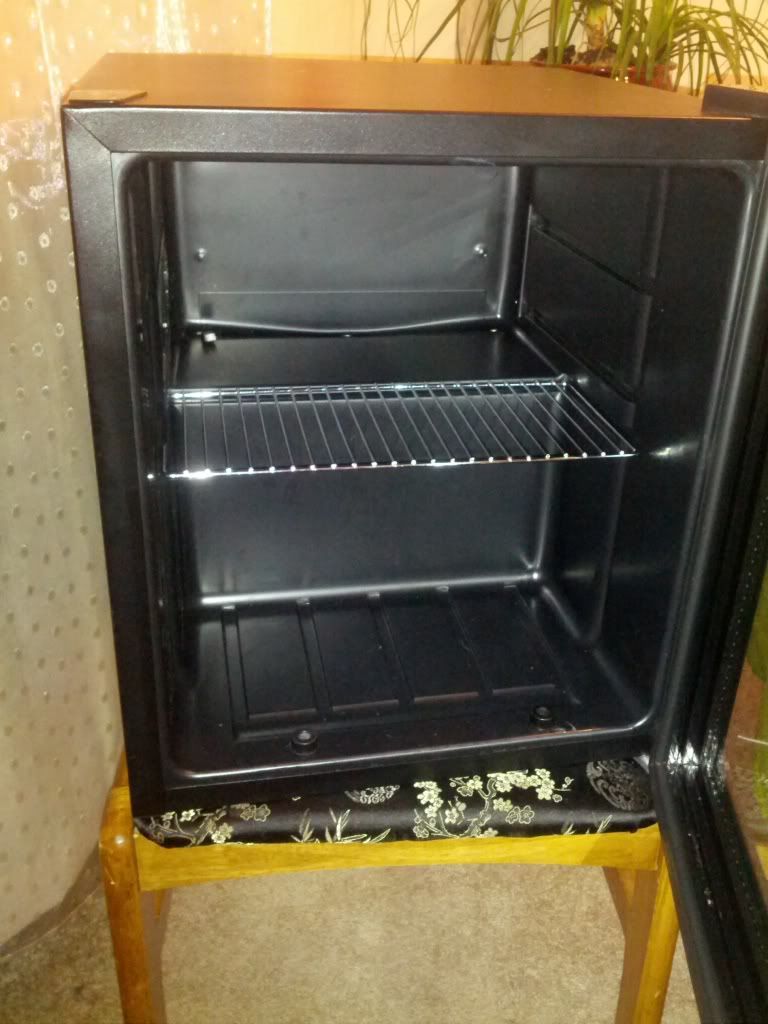

First I removed the cooling system and all the tubing for it.

http://i1172.photobucket.com/albums/...121_205620.jpg
http://i1172.photobucket.com/albums/...121_205703.jpg

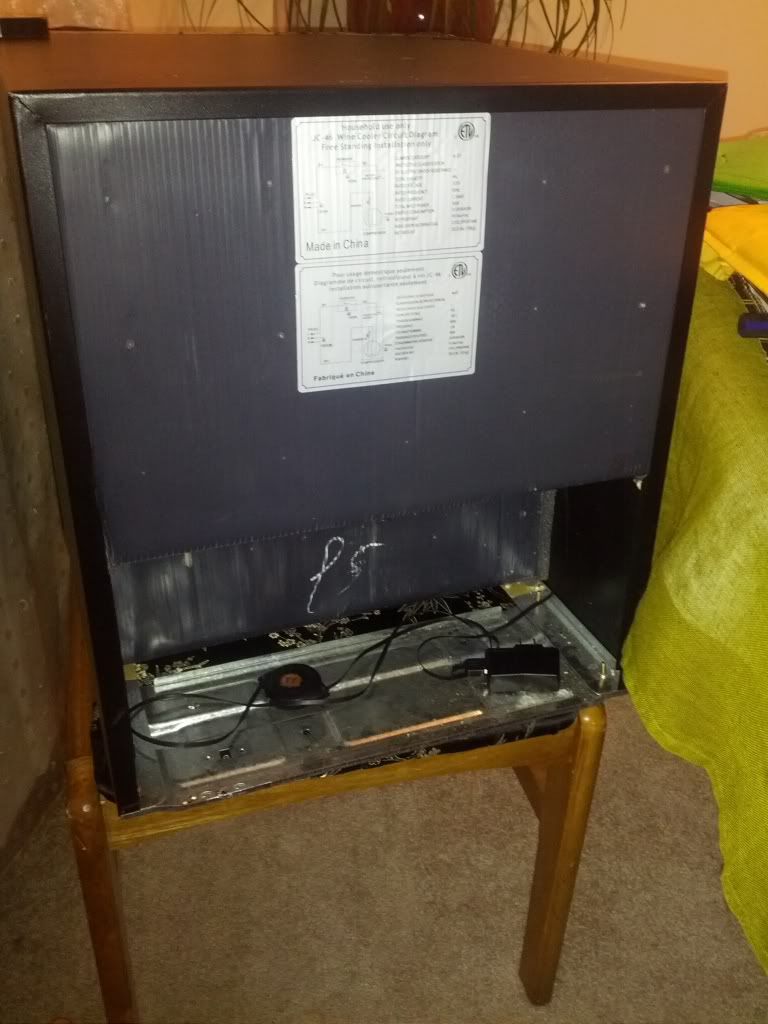

On the bottom of the cooler there was a hole for a hose and it actually fit all my wiring so I did not have to drill any holes.

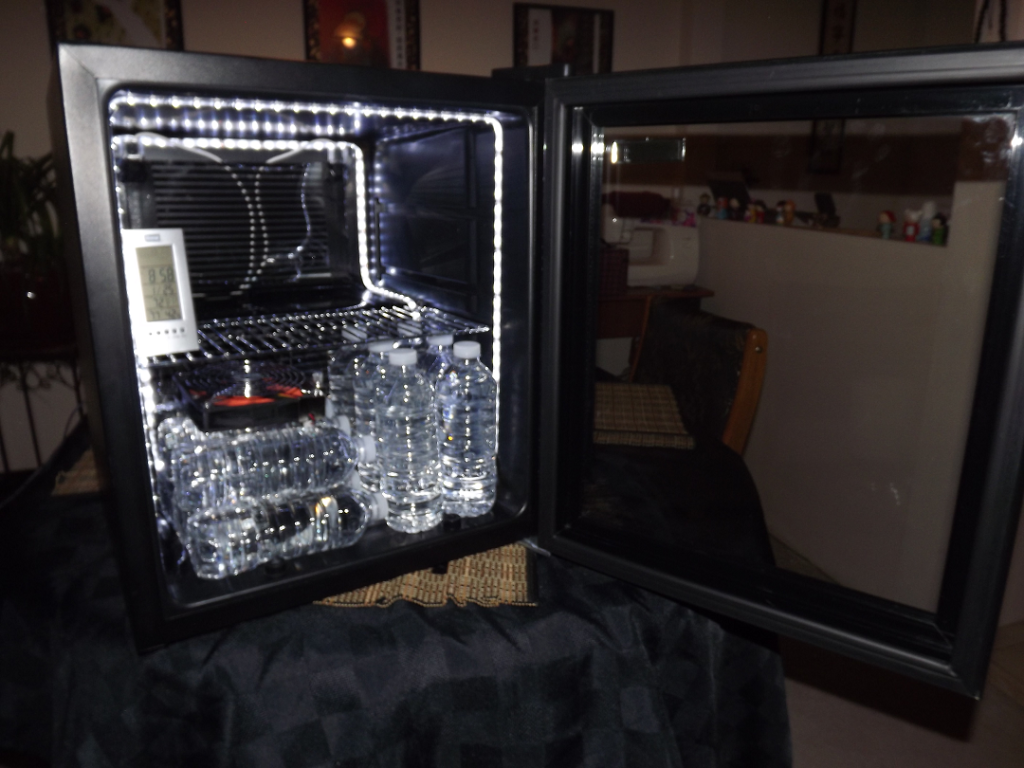

Then I installed flexwatt and lighting and fan and water bottles.

http://i1172.photobucket.com/albums/...achnids/b4.png
http://i1172.photobucket.com/albums/...achnids/b6.png
http://i1172.photobucket.com/albums/...achnids/b7.png

Mines a "PIMP YO INCUBATOR" LOL But there are some things I did differently after taking these pictures.

I took out some of the water bottles since I had too many.

I moved the fan to the top rear of the incubator.

The lights I only turn on when I look into it because they produce a lot of heat.

The fan has a built in speed control and its USB powered so I use a USB wall adapter.

It fits 2 tubs because I only plan on having 2 clutches this year.

Total cost was about $150. Total time about 1 1/2 hours.

I think thats about it.

This is my build thread:
http://ball-pythons.net/forums/showt...ight=incubator

Here is our build (eggs are cooking now :D):
http://www.youtube.com/watch?v=niOCEQL-W34

http://img.tapatalk.com/d/13/04/08/y2eje8aq.jpg
http://img.tapatalk.com/d/13/04/08/etujube4.jpg

Here's the incubator I made out of a cooler.

Here is one I made
http://youtube.com/watch?v=XNZAa_bYOiY

This is our smaller incubator, it's a redbull true cooler.

It has 2 strips of 3 inch heat tape against the back wall running vertical.
A false wall placed about an inch and a half from the back wall.
A bathroom ceiling fan plugged into a rheostat to control airflow.
A smaller fan would work, but I love the ability to fine tune the airflow.
The fan sucks air from the top downwards over the tubs and pushes it through a hole in the bottom of the wall, over the heat tape and up to the top where it is blown out into the inc to repeat the cycle.
The probe for the herpstat is put through the top and it is hanging in front of the heat tape behind the wall, SUPER STABLE.

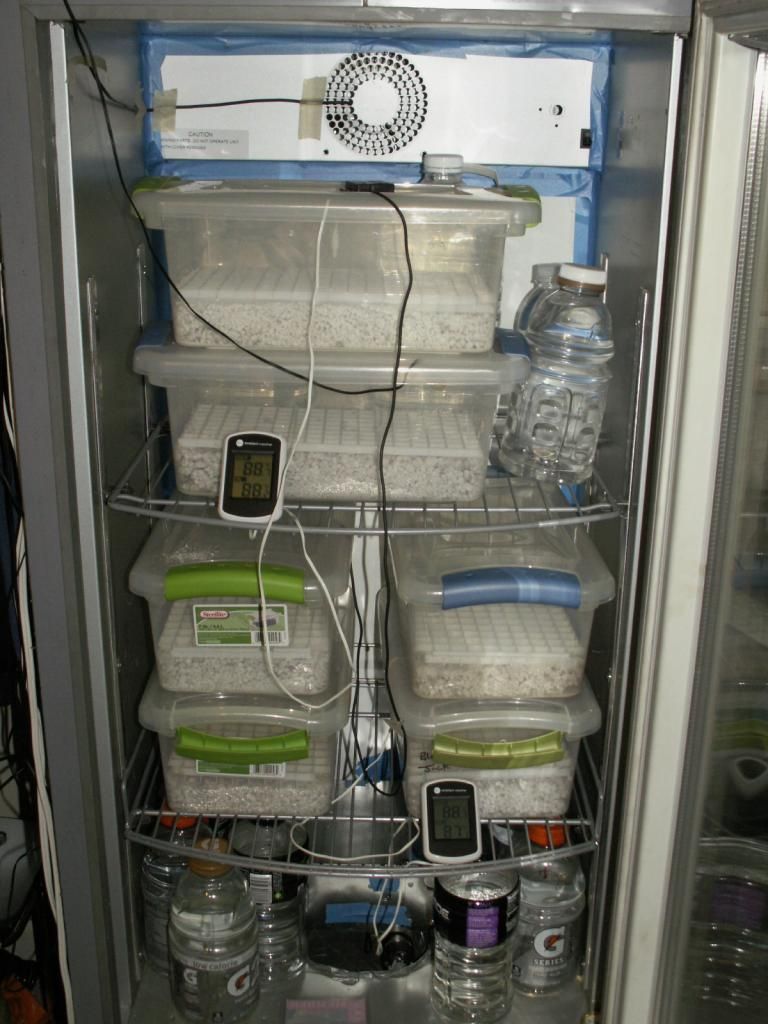

We did this same build with our larger incubator using 11x12 inch heat tape.


http://i968.photobucket.com/albums/a...ps48f360b9.jpg

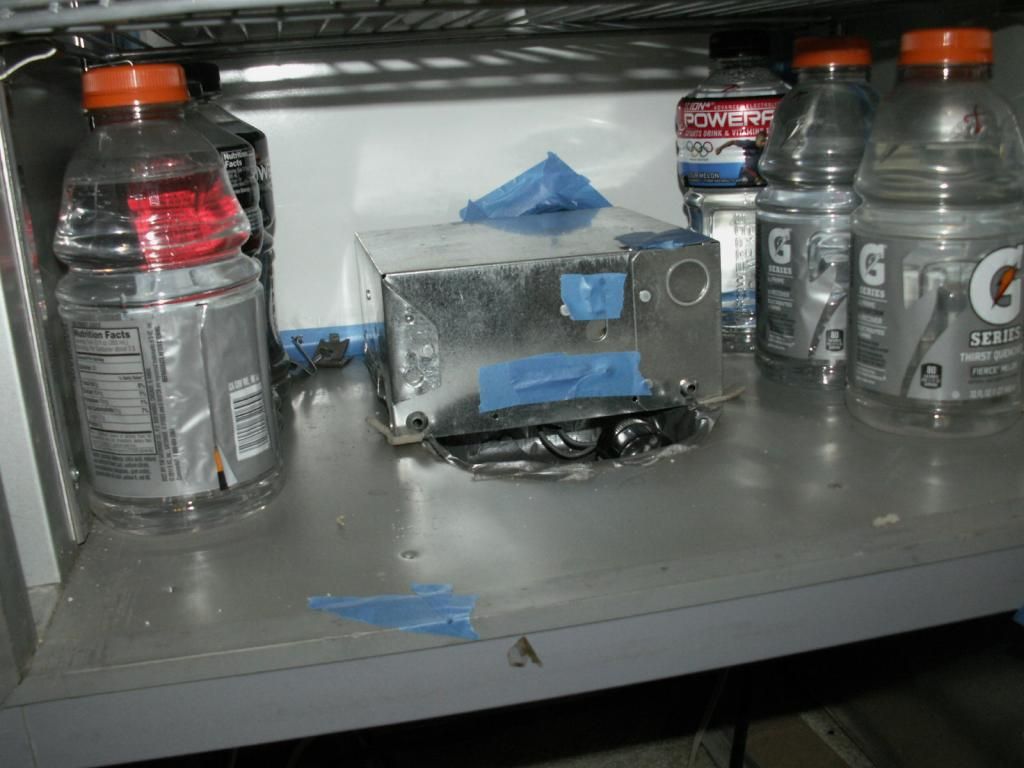

Ceiling fan, not recommended for any incs smaller than this one, they create heat ...
http://i968.photobucket.com/albums/a...psa7d3c14f.jpg

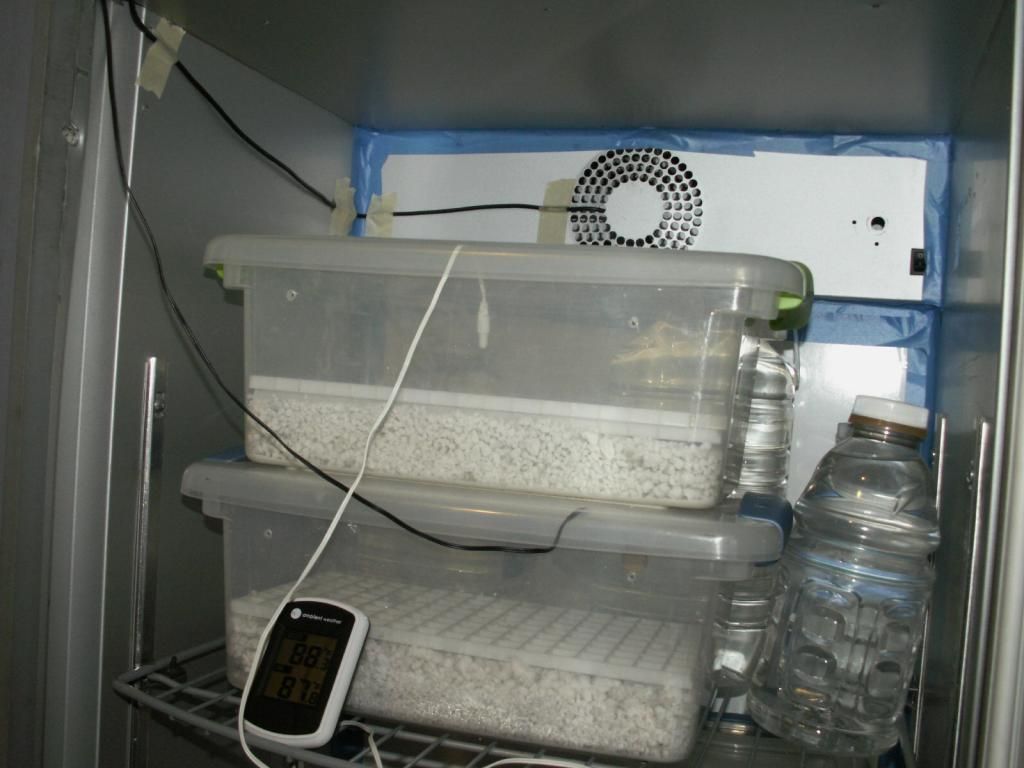

Top hole where heated air comes out, and where the thermostat probe is.
http://i968.photobucket.com/albums/a...ps321f1c2a.jpg

Quote:

---

Originally Posted by snakesRkewl

This is our smaller incubator, it's a redbull true cooler.

It has 2 strips of 3 inch heat tape against the back wall running vertical.
A false wall placed about an inch and a half from the back wall.
A bathroom ceiling fan plugged into a rheostat to control airflow.
A smaller fan would work, but I love the ability to fine tune the airflow.
The fan sucks air from the top downwards over the tubs and pushes it through a hole in the bottom of the wall, over the heat tape and up to the top where it is blown out into the inc to repeat the cycle.
The probe for the herpstat is put through the top and it is hanging in front of the heat tape behind the wall, SUPER STABLE.
We did this same build with our larger incubator using 11x12 inch heat tape.


http://i968.photobucket.com/albums/a...ps48f360b9.jpg

Ceiling fan, not recommended for any incs smaller than this one, they create heat ...
http://i968.photobucket.com/albums/a...psa7d3c14f.jpg

Top hole where heated air comes out, and where the thermostat probe is.
http://i968.photobucket.com/albums/a...ps321f1c2a.jpg

---

What is the model of those bins with the blue and green latches? I haven't seen those . Thanks

This is Mine: http://ball-pythons.net/forums/showt...-with-Pictures

With cost... some mistakes made.. learning curve... and corrections... :gj:
