So I think I have an idiot proof incubator...

As a disclaimer, I take no responsibility for your eggs, I am simply reporting what is working for me. The incubator should be considered very experimental, use this design at your own risk.

And idiot proof is exactly what this idiot needed. I am a tinkerer by nature and this hobby gives many opportunity for tinkering. For some reason when I first started breeding, I found incubation to be hard to get "just right." Always seemed to be some sort of problem I had to constantly manage, too little humidity, or too much water on the eggs, mold, ect. Don't get me wrong, I still got things to hatch, but there were a few failures also and it flat out sucks. So about 3 years ago I started trying different things because I apparently couldn't get the cookie cutter methods to work well. The success of my last 2 clutches makes me feel I really need to share. Not only do I just pull the eggs, put them in and never touch a thing til hatch day, I also have a weird side effect, day 51-52 hatch days, not pip days, crawl out of egg days.

So here is what I have going on:

70 QT cooler
http://i1269.photobucket.com/albums/...ps47329cf1.jpg

Thermostat for temp control, aquarium air pump to pump fresh air, small electrical box just contains splices for all the power, bigger box contains a small 120v to 12v transformer
http://i1269.photobucket.com/albums/...pseeca708e.jpg

Results of success today! Also just showing light diffuser, which is what the eggs sit on.
http://i1269.photobucket.com/albums/...ps4f6e8804.jpg

The cooler I have has grooves on the side, that make a great spot to put the pvc pipe, that supports the light difuser. Also notice the entire bottom is filled with water.
http://i1269.photobucket.com/albums/...psb0b80e4d.jpg

thermostat probe zip tied to the bottom of the pvc pipe
http://i1269.photobucket.com/albums/...ps73b4e360.jpg

Standard cheap 80mmx80mm computer fan (powered by the 12v transformer), mounted by weatherproof screws, electrical connectors are stuffed with liquid electrical tape. Also all wires and tubes are epoxyed in.
http://i1269.photobucket.com/albums/...ps478ab2b7.jpg

25watt aquarium heater for a heat source, connected to the thermostat output. Obviously the dots don't hold up well on it lol. Also a big air bubbler connected to the air pump.
http://i1269.photobucket.com/albums/...ps1b4f4140.jpg

So here was my logic with everything. I used a cooler because one of the cookie cutter incubator (you know I am just going to start calling them CCI) designs called for it so I had it laying around already, it also makes a good candidate to hold a few inches of water. CCI normally have bottled water for heat retention and a separate source of humidity, filling the bottom does both, I have enough to keep the bubbler and heating element under water, nothing specific about it. I use an aquarium heater instead of the CCI heat tape because it further increases the humidity. Then having a bubbler in the water increases humidity and also introduces fresh air into the system. I read about someone elses increased success pumping fresh air into their incubator and I figured why not. I really can't think of a way to get more moisture into the air, which seems to work well for the eggs.

The fan keeps air moving around the incubator, it helps water from building up, helping keep moisture in the air. Temps are evenly distributed around the incubator. Air movement also keeps water off the eggs, off the top and bottom of them, which is why I keep them openly on the light diffuser. No mold problems, no rotting eggs, (I had these issues with the CCI substrates) they are dry but, surrounded by humid air.

So I used this design this year and kept incubating at 89 degrees. I ran into a big surprise, day 50 hatch date... where the heck did that come from, maybe the female kept them inside her longer than expected? Next clutch, day 48 hatch date, next clutch day 50, next clutch day 49... obviously not a fluke but, problem with quite a few of them, was the yolks were not all the way absorbed and they were noticeably smaller on average than what I would call normal. I did however get 100% hatch rates. They all eventually started eating just fine so it wasn't a huge deal and while there was a cool factor with speed hatching eggs, obviously this wasn't ideal. So my last 2 clutches all I did was lower the temps to 87 degrees to see if we got better results.

Both clutches hatched between days 51 and 52, 70+ grams babies, yolks fully absorbed, they couldn't look healthier to me. I expected longer hatch dates honestly, but if I keep getting ideal babies, I see no reason not to keep doing this. Might be a bad picture, but this little girl came out today from a bumblebee het hypo x hypo clutch :) Can't wait for first shed now lol.

http://i1269.photobucket.com/albums/...pswrpbywxu.jpg

Now my big question is why am I getting early hatch dates? I look at the differences between my design and CCI and I would say I more than likely have more humid air. Also the fresh air might have something to do with it? you would think it might dry out the air slightly, but maybe getting rid of egg outgassing helps? I also wonder, while the air pump is not very strong at all, if it is putting small amount of pressure on the eggs, basically making the incubator a pressure cooker? Any theories I am welcome to.

I have a 6 foot chest freezer I plan on turning into a upscaled version of this design this year. See if I can repeat the same results. Regardless, I am very happy with this design as it really is idiot proof, put eggs in, wait til they hatch, I haven't had an issue come up that used to almost always happen to me before. No substrates to work with either. Obviously I do monitor the eggs, but I could of just as easily put them in and came back 51 days later and still had the same result. I do also put them in a box inside the incubator once they pip, I just fear they might venture through the light diffuser. If anyone is brave enough to experiment with me, I would love to hear your results as well. I'm sure there are still plenty of ways to improve upon this.

Wow that is a killer design. I may just give this a shot myself

Sent from my SM-G730V using Tapatalk 2

I always wondered if fresh air should be forced into the incubator some how. After a month or two the incubator always seems stale and sort of stinky. I never had a problem with my babies in my mini fridge incubator. I never tried anything because I have never heard of anyone pumping air in. I would be curious to see what would happen if I used one of the aquarium pumps I have laying around.

I would be interested in hearing if that changes your results

I would be willing to try it given Ohhwhataloser's success. Has anybody ever done anything like this before? In my head I will have a lot of tubing and have it run down the flexwatt so the air is the same and run it with a valve slowing it,to about half directly into the egg tub. I also go substrateless and could have it into the water or somewhere as long as it's not directly blowing on the eggs it should be fine. I could also put it on a timer to run a couple of minutes every hour. I have more fish than I do snakes so I have this stuff laying around! (Also I have 17 snakes so that tells you what's going on in my life lol)

Has anyone ever tried this? Or anything like it?

If you do, I found a big bubble stone works much better than small ones, doesn't cause a miniature fountian in the incubator

Sorry to dig up an old thread but my albino finally ovulated on Wednesday! I am going to be putting my incubator back together and adding in the element of fresh air pumped in and give it a go! I will start a new thread with my incubator build and to keep track of my progress either tomorrow or next weekend (whenever I get around to putting the bator back together lol) did you have any clutches this year and any new results to report OhhWatALoser??

First clutch should be hatching in a week, if I am still getting the low 50 hatch dates

So does the air pump come on when the heater kicks on, or is it running all the time ?

The air pump stays on all the time.

I had another day 51-52 hatch, then 1 took his time and stayed in there til like 54 lol.

Next clutch, had an albino crawl out on day 48 but had yolk still, it fell off this morning and it seems to be doing fine. Another one came out today, day 50. Two others are still just sticking their head out.

So this guy was first one that was less than ideal with my most current set up, but I guess they all can't be perfect.

Update for the rest of my clutches, the albinos came out of the egg finally, all healthy now. spider x spider clutch had 4 eggs, an egg went bad during the process but the other 3 went full term, 2 spider 1 normal, i believe they were day 49-50. Had a dinker project female lay 2 eggs and 4 slugs, the 2 eggs went bad in the first 3 days, with veins, so I don't think that was the incubators fault. last clutch was a lemonblast het hypo x pin. 8 eggs, 3 pin, 5 lemonblast, day 49-51 hatch, no issues.

So unless i get any more surprises that seems to be all i get this year. I have been more than pleased with this incubator tho.

So is the egg from the spider x spider clutch the only egg that has gone bad? Maybe that was your 25% super spider.

Sent from my SM-G920P using Tapatalk

Quote:

---

Originally Posted by devemile

So is the egg from the spider x spider clutch the only egg that has gone bad? Maybe that was your 25% super spider.

Sent from my SM-G920P using Tapatalk

---

Shhh... You'll make people mad suggesting that. :P

Lol. I was looking at it more for the success rate of your incubator. I retract my last statement...

Sent from my SM-G920P using Tapatalk

Quote:

---

Originally Posted by devemile

Lol. I was looking at it more for the success rate of your incubator. I retract my last statement...

Sent from my SM-G920P using Tapatalk

---

Lol, well I'll put it this way, I'm completely happy with the success rate of it so far and plan on upsizing it with my 6 ft freezer. I bought heaters fans and all that to build it for the freezer but im still in the middle of a move, also I had a pretty bad year as far as number of eggs and never saw a reason to get it together for this year. Maybe next year.

Cool. I've already started a wine cooler build so i will probably stick with it, but I may try to incorporate the fresh air concept.

Sent from my SM-G920P using Tapatalk

So in my last two years of reading this forum I missed this post. As I said in my intro I read almost everyday but only what shows up to those not logged in so it must have slipped by. My kids just asked me "did that guy ever tell how he hatched snakes fast?", then I found this post. I'm surprised you got so few responses. As I also said I'm a koi guy so fish stuff is second nature to me.

I think you've got some great ideas here for an incubator. Have you seen the needlepoint plastic mesh people put in their egg boxes over the eggcrate (I'll have some pictures up soon)? It has ~3/16" inch holes so snakes don't crawl through the eggcrate. I realize for this discussion to really continue/take-off you need to use it for another season and report your success/failure or someone else has to build the incubator and report their findings.

The thing I really like about it is the humidity control and the fresh air being pumped in. I have a C Serpents incubator, so I do the Press & Seal route to keep humidity up. This year I have an egg that smells bad but candles good and I think getting fresh air to it could make the difference. The problem is piping air tubes to each egg box would be difficult. Your design is sort of an all-or-nothing approach.

Last year (maybe the year before) I saw one of the big breeders take out all the substrate out of his egg boxes and put a swamp cooler in his walk in incubator. The swamp cooler provides all the humidity and heat was provided separately, I wonder how his eggs did? That, to me, is a variant of your design. He probably didn't pump in fresh air.

Have you thought of using a 6 quart box to keep the eggs separate, but making the walls and lid swiss-cheese with holes so air will flow through it?

Some smaller mesh wouldn't be a bad idea, I haven't had problems but preventing them before wouldn't hurt. I have no intention of using boxes just gives places for water to sit against the eggs, I just separate them in groups on the light diffuser. When I do my freezer incubator I plan on having multiple levels of light diffuser so there should be plenty of room for eggs.

It would be easy enough to make some sort of divider than it would be to use tubs that got hit with bird shot.. In response to samO

Great Incubator Bro!

Sent from my SM-G900T using Tapatalk

This is a really interesting design and given your success rates you've inspired me to build a couple of these. One for my BPs and one for my retics. I won't have eggs till next year and will post a thread when I start building. Gonna subscribe to this thread so I can keep up. My one question would be what would you think of using cheese cloth or something else to cover the diffuser? Or would that hold to much water on it? I would also think using plastic canvas would be a great budget way to cover the diffuser, if you could find it. Just my thoughts.

snake room

Cheese cloth might hold water but it would block airflow, I wouldn't suggest it. If you saw how big a normal hatchling ball python is compared to the holes in the light diffuser, you wouldn't put a second thought toward it. A runt ball python might be able to slip past, which is where I do like the idea some plastic mesh under the light diffuser that should be able to stop it. I say under, because the egg would still get the same airflow.

Quote:

---

Originally Posted by OhhWatALoser

Cheese cloth might hold water but it would block airflow, I wouldn't suggest it. If you saw how big a normal hatchling ball python is compared to the holes in the light diffuser, you wouldn't put a second thought toward it. A runt ball python might be able to slip past, which is where I do like the idea some plastic mesh under the light diffuser that should be able to stop it. I say under, because the egg would still get the same airflow.

---

Just hatched my first clutch this year actually [emoji2] I guess the holes in the diffuser just look big to me in those pics that's why I asked. Have you tried the battery powered aquarium heaters? I heard those work pretty well.

snake room

I don't see any advantage to something battery powered, I can't control it with a thermostat and I have to worry about batteries dying. I wouldn't even use one on my fish tank lol.

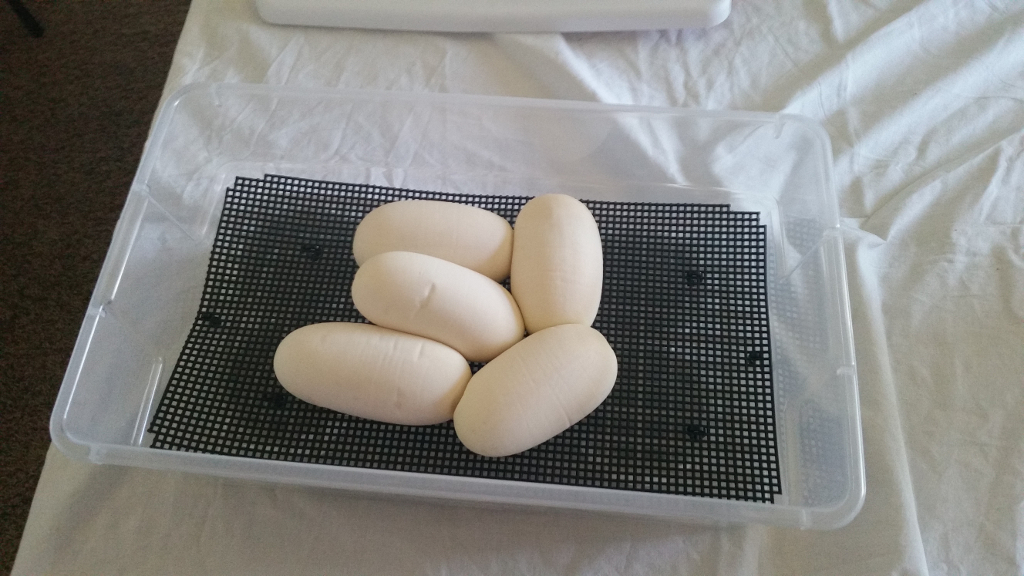

I like the idea of multiple levels - use all the space in the incubator. Might even be able to make stackable eggcrate boxes, or some other method of remove shelves easily. Here is the plastic grid I was talking about (below). I also see why you might want to put it below the eggcrate, less plastic in contact with the eggs.

http://user.xmission.com/~ramcat/ima...irstclutch.jpg

Nice!

I'm bookmarking DIY incubator threads. This one is on the list.
