Rat Rack 4 Rapture

Here ya go D :D

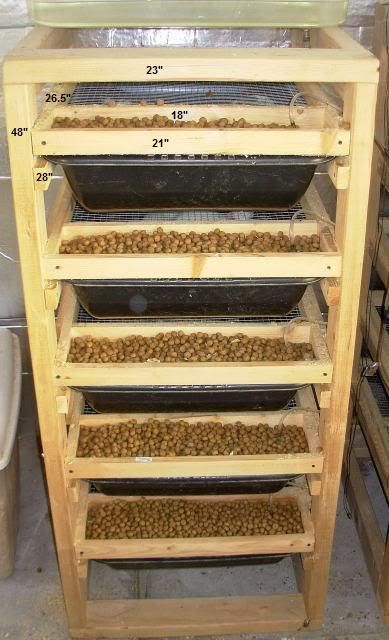

You will need to following materials. The total cost per rack is ~$100.

2x4s
4x 48"
4x 23"
4x 21"

1x2s
10x 20"
10x 26.5"
10x 21"
10x 28"
5x 18.5"

5x 20"x28" 1/2" screen

1x 28qt sweater box

5x brass watering nipples

lots of screws and aquarium air line tubing

http://i66.photobucket.com/albums/h2...ython/ratr.jpg

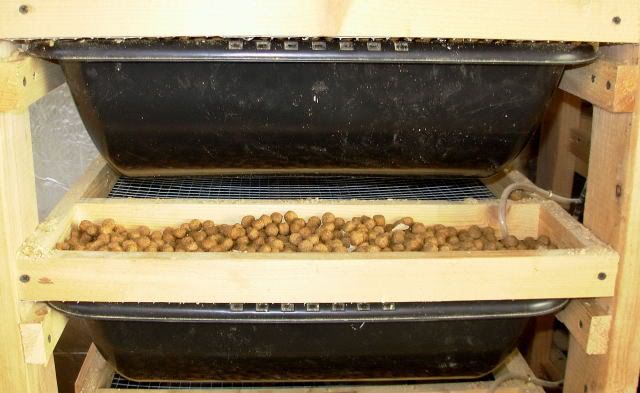

Here is the food bin. Note the tracks that the tubs slide on :D


http://i66.photobucket.com/albums/h2...n/DSCN1333.jpg

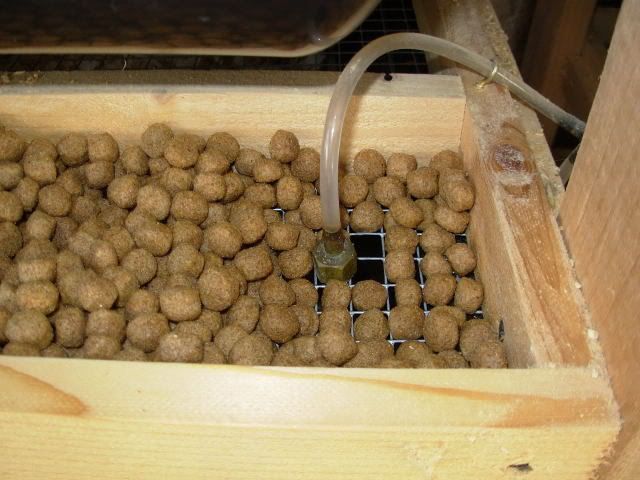

Here is the water nipple fitting. Note the perfect fit with 1/2 screen.


http://i66.photobucket.com/albums/h2...n/DSCN1332.jpg

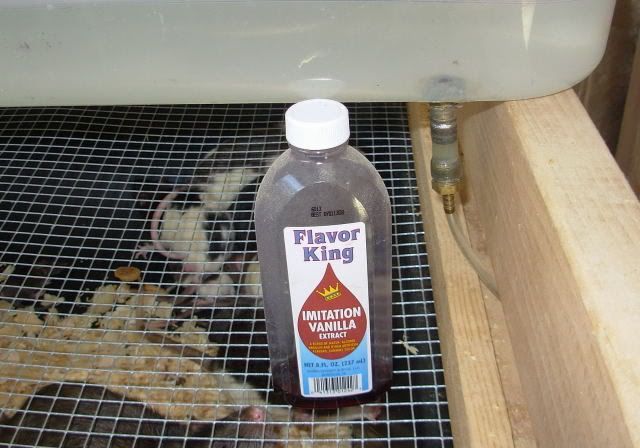

Here is the gravity water fitting. I used brass reducers to the aquarium line size and made a quick release for easy removal when cleaning the tub. I use a little vanilla extract in the water, it seems to cut the urine smell greatly.

http://i66.photobucket.com/albums/h2...n/DSCN1334.jpg

Nice rack Cuebert! :P True!

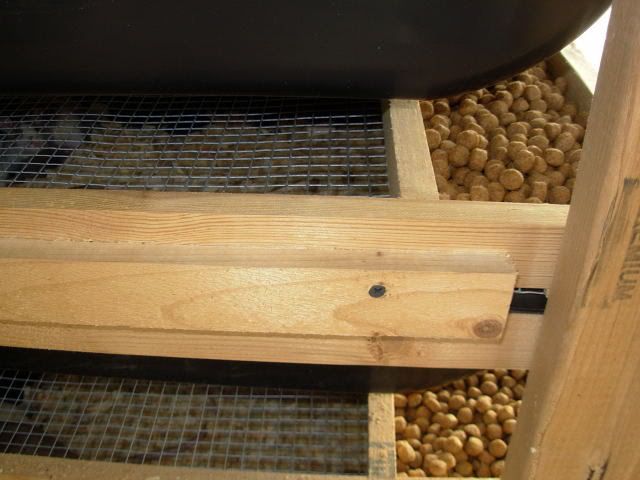

You will want to use a 1x2" on the outer guides to keep the tub properly in the track.


http://i66.photobucket.com/albums/h2...n/DSCN1331.jpg

Yay!!!

Quote:

---

Originally Posted by Laooda

Nice rack Cuebert! :P True!

---

Back at ya :carouse:

Quote:

---

Originally Posted by Rapture

Yay!!!

---

Now get crackin' :P

If you ever head down to New Orleans let me know if you want to make a few extra dollars. I could use one. Mine did not turn out so hot.
